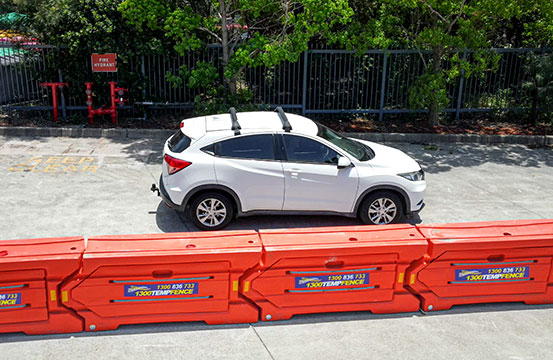

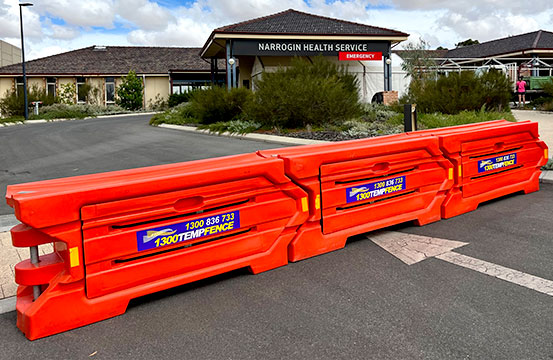

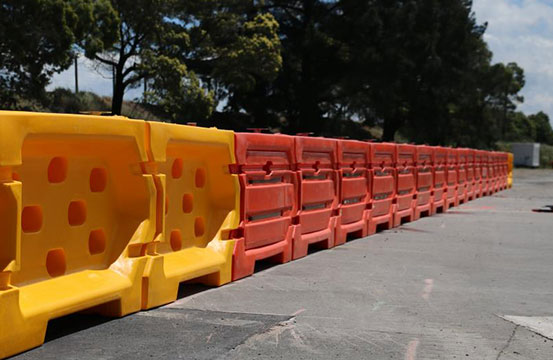

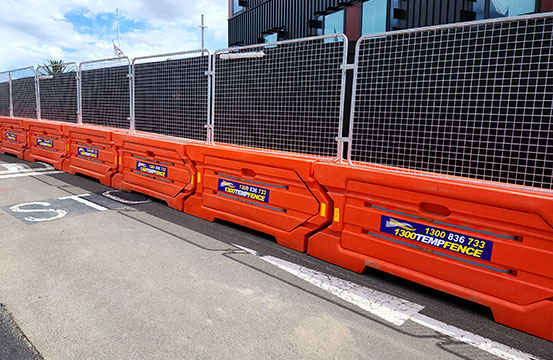

Water Filled Barrier – Shield I

The Shield I safety crash barrier is a unique barrier utilizing a high strength modified UV stabilised polyethylene and patented composite design. Made in Australia and approved by road authorities Australia wide.
It is a redirective barrier, easy to install with steel connecting pins. Tested containment MASH test level 1 (2,270kg) at 50km/h and 25 degrees Accepted dynamic deflection 2.2 metres. Status-Accepted and may be used on the classified road network.

Specs

Height920mmWidth600mm
Effective Length2,000mmOverall Length2,200mm
Weight Empty81kgWeight Full611kg
Water Fill to Top530 LitresImpact Speed RatingTL-1, 50km/h
Joining SystemSteel PinMinimum Length of Need 44m
MASH Test Level 1YesRoad Authority ApprovedYes

Documents

Safety Barrier System Conditions – approved by VIC Roads
Click to read

Safety Barrier System Acceptance Conditions – approved by NSW Government
Click to read


Call 1300 836 733 or leave your message for a quote

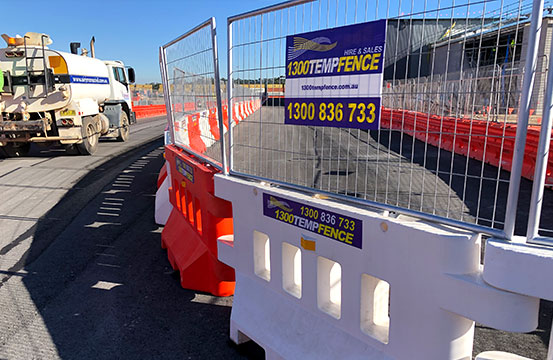

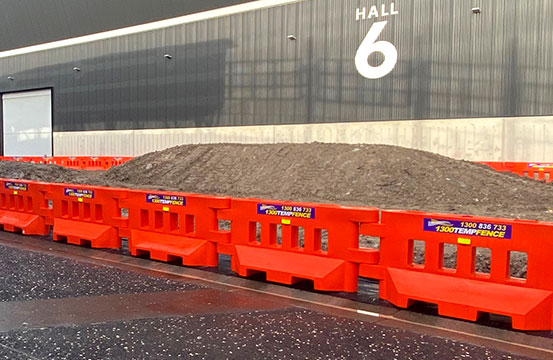

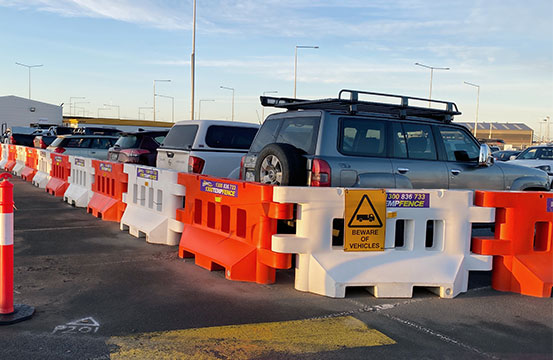

Water Filled Barrier – KI 1000

The KI 1000 Barrier has been designed specifically as a pedestrian and low speed zone barrier. Its simple interlocking system allows barriers to remain connected while moving through angles 120 degrees each way.
The barriers are fitted with retro reflective tape and have two apertures topside for fitment of hazard lights, pole signage or extended mesh fencing. The barrier also complies with Australian Standard AS1742-3-1996 Traffic Control Devises for works on roads, Section 3.10.1 (C).

Specs

Height1,000mmWidth570mm
Effective Length2,000mmOverall Length2,200mm
Weight Empty32kgWeight Full387kg
Water Fill to Top355 LitresImpact Speed Ratingn/a kph
Joining SystemInterlocking

Provision for

Amber LightYesMesh FencingYES
Pole SignageYes
